Mechanical Feed Metal Strip Applicator
Product List
The following is a partial list of the product order numbers and their specifications that this tool is designed to run. Updates to this list are
available on www.molex.com .
Terminal No. Terminal Eng. No.
Wire Size Insulation Diameter Max. Strip Length
AWG mm 2 mm In. mm In.
19019-0047
19019-0081
19019-0082
19019-0083
MZ-8130
MZ-8133
MZ-8136
MZ-8136-032
24-26 0.20-0.12 1.80 .071 4.76 .187
24-26 0.20-0.12 1.80 .071 4.76 .187
24-26 0.20-0.12 1.80 .071 4.76 .187
24-26 0.20-0.12 1.80 .071 4.76 .187

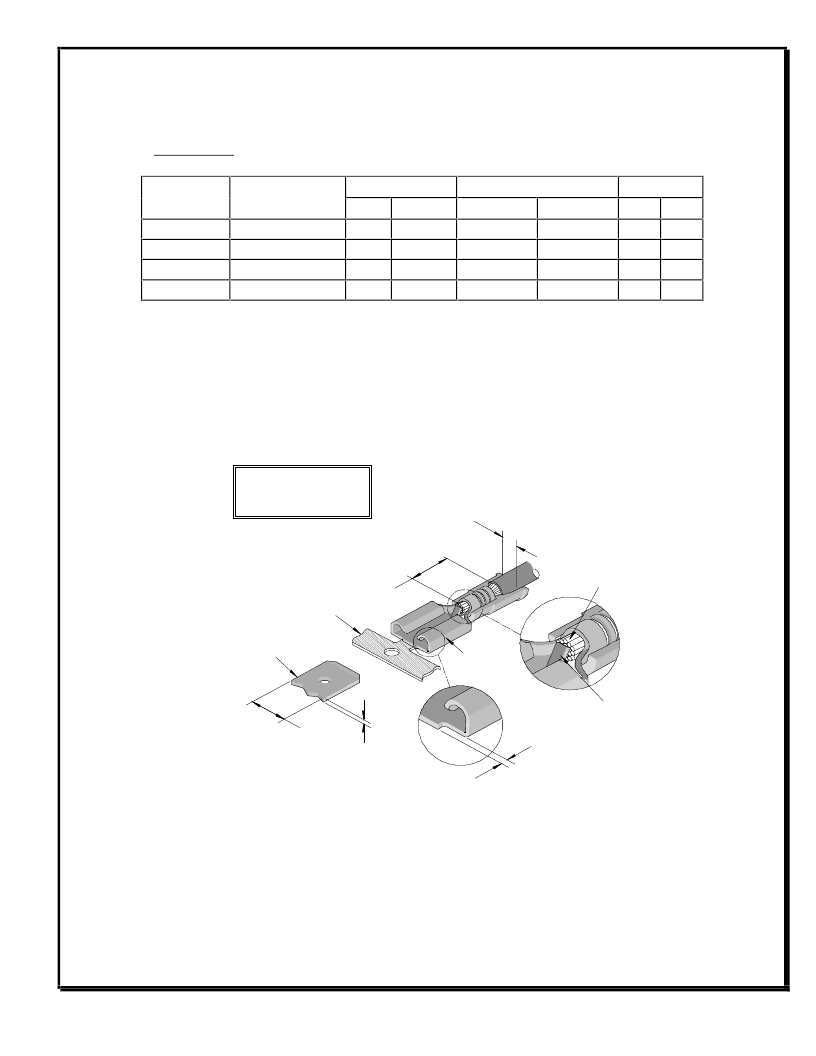

DEFINITION OF TERMS
The following illustrations are a generic terminal representation and not an exact image of any terminal listed in the scope.
Insulated Female
Quick Disconnect
STRIP
MWID OR MAX
INSULATION
DIAMETER
BRUSH
MALE QD
TAPE OR
MOLDED REF
TERMINAL
STRIP
LENGTH
FEMALE QD
TAB
SIZE
TAB SIZE
CUT-OFF
TAB
WIRE STOP
Figure 1
Doc No. 63881-0100
Revision: D
Release Date: 12-15-04
Revision Date: 09-30-05
UNCONTROLLED COPY
Page 2 of 6
